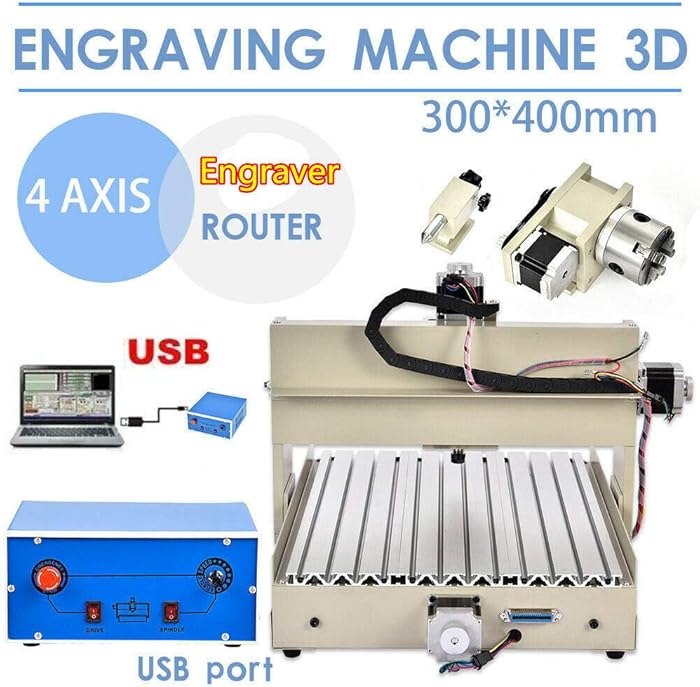

CNC Engraver Machine, 4 Axis 3040 CNC Router Engraver 400W Desktop Wood Engraving Drilling Milling Machine 3D Wood DIY Artwork Cutter USB Port
- The engraving process is visible as controlled by computer,simple operation and installation.More steady and strong equiped with aluminum alloy frame materials can control the engraving more precise.
- Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.Can engraving much more materails by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone.
- Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.Emergency stop button enhance security
- Cover plates reducing pollution for the screws and shafts.The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
- The chrome shafts is not easy to deform,suitable for long time use.Flexible coupling can be used for high torque transmission.High Precision Stepping motor makes engraving more precise
Technical Parameters
Effective working travel:275(X)mm*385(Y)mm*65(Z)mm
Dimension:610×480*400mm
Max.workpiece dimension:70mm
Work table dimension:320mm*530mm
Frame materials:aluminum alloy 6063 and 6061
Leadscrew:1404 double thread Trapezoidal screws
Stepping motor type:57 two-phase 1.8A
Spindle motor:400w dc motor 500~8000PRM/Min
Principal axis collet:ER11 / 3.175 mm
Repeat accuracy:0.05mm
Spindle precision:radial beat acuities 0.03 mm
Control unit:triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions:G-code/.tab /.nc / .ncc/.txt
Communication interface:through USB connection with computer
Maximum Idle speed:1500mm/min
Working Speed :50-1500mm / min (different material with different speed settings)
Machine weight:28KG
Control box parameters:
Operating Voltage:AC110V
Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
Computer connection:on board USB port
Command code:G code
Protection:Emergency stop button
Application
This 3040 engraer is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.
The Computerized Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make adverstising signs,PCB,nameplates,badges,seals,bronzing plate,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
Genmitsu CNC 3018-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 300x180x45mm
- New Version: Genmitsu CNC 3018-PRO is an upgraded version of 3018. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. Moreover, the base height is raised to 4cm for a better stability.
- Integrated: With an integrated mainboard and custom software, communication between the software and hardware is seamless by design.
- Software: The Genmitsu uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make Grbl an industry standard, so there’s no lack of support and resources available when you get stuck.
- Versatile: Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the Genmitsu can be used on a wide range of projects and materials.
- Simple Assembly: Assembly instructions are provided, but if you get stuck, check out the SainSmart wiki page or contact us with any questions that arise. ONE YEAR WARRANTY covered.
Overview:
Designed with the absolute beginner in mind, the Genmitsu is an excellent self-teaching tool which allows you to
try your ideas on an inexpensive platform without the risk of damaging expensive equipment. Since it’s built on
Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy
to find elsewhere online.
SPECIFICATIONS
Effective Engraving Area: 300 x 180 x 45 mm(11.8 x 7.1 x 1.8”)
Frame Size: 400 x 330 x 240 mm(15.7 x 13.0 x 9.4″)
Frame Material: PF+ Aluminum
Z-Axis Component Material: Nylon
Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM
Rated power: 60W; Maximum power: 120W
Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
Drill Bits: Tip 0.1 mm, 20 degree, Diameter 3.175 mm
Supported OS: Windows XP, Windows 7, Windows 8, Windows 10
Software: Grbl control(Candle)
Power Supply: 24V/4.75A
DOWNLOAD:
http://s3.amazonaws.com/s3.image.smart/download/101-60-280PRO/101-60-280PRO_3018PRO.zip
WHAT’S INCLUDED?
1 x DIY Router Kit
1 x Extension Rod with ER11 Collet
4 x Plate Clamp
10 x CNC Router Bits

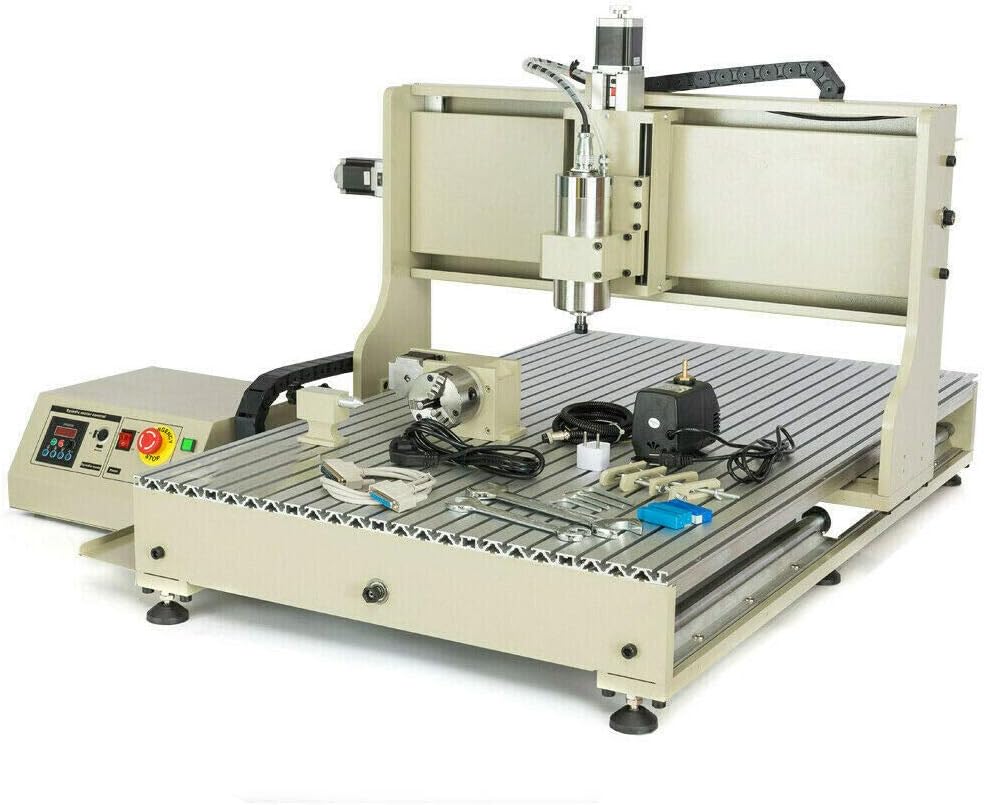

1500W USB 6090 4 Axis CNC Router Engraver Engraving Desktop 3D Engraving Drill & Milling Machine VFD PCB+ RC Wood Metal Steel Miller Cutter USA Stock
- ★ Outside dimension: 1150*970*650mm(L*W*H), working platform size: 1045*720mm(L*W), frame Material：The whole machine used 6061 aluminum profiles, max. Feeding height: ≤140mm(From base of Z axis to platform), X,Y,Z Working Area: 900(Y)*600(X)*140mm(Z)
- ★ The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood, water cooling spindle works more stable and durable.
- ★ High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
- ★ Woodworking industry: sculpture, round carving, wooden handicraft processing, advertising industry: advertising signs, logo making, cutting acrylic, plastic molding, suit for making a variety of materials advertising decorative products
- ★ USA Warehouse: CA NJ Warehouse，UPS or FED Shipping delivery 3-5 business days .Gdrasuya Customer department will reply your information within 24 hours. If you have any questions, please feel free to contact u
3D Router engraving machine parameters:
Model: 3D6090GZ
Outside dimension: 1150*970*650mm(L*W*H)
Working platform size: 1045*720mm(L*W)
Frame Material：The whole machine used 6061 aluminum profiles
Max. Feeding height: ≤140mm(From base of Z axis to platform)
X,Y,Z Working Area: 900(Y)*600(X)*140mm(Z)
Sliding unit:
X axis:SFU1605 Ball Screws
Y axis:SFU1605 Ball Screws
Z axis:SFU1204 Ball Screws
Drive unit:
X axis: ø20 High intensity round rail,
Y axis: SBRø20 high-strength aluminum base rails
Z axis: ø12 high-strength round rail
Stepping motor: 57 two-phase 3A (with handwheels)
Driving Power for Stepping motor: AC220, 240W, out put: DC24V, 10A
Maximum Idle speed:1500mm/min
Working Speed:50-1500mm / min
Spindle motor: 1500W high-speed variable frequency spindle motor , ER11 chuck, with 6mm collet.
(tips：1. The spindle motor must connect with the VFD.
2. It cannot directly connect with the supply voltage (AC220V).
Drive of Stepping motor: 0-3.5A adjustable four-axis drive
(TB6560AHQ chip, 24V power supply, 2,4,8,16 subdivision can be set, factory settings 8 subdivision)
Repositioning precision: ≤0.05mm
Cooling: Water-cooling
Speed: 0-24000r/m
Spindle precision: Radial runout ≤ 0.03mm
Carving command: G code / TAB file / nc file / NCC file
VFD: AC220V, 1500W, 0-400Hz (built-in control box)
USB Control box parameters
Protection: Emergency stop button
Recommend : fit for EMC2
Communication interface: through USB PORT connect with computer
support system: Windows XP / win7 with 32 bit
VEVOR CNC Router Engraver Kit 3040 CNC Router 4 Axis USB Port CNC Router Engraver Machine 500W CNC Router Engraving Drilling Milling Machine MACH3 Control for DIY(300X400mm)
- 【SPECIFIC PARAMETERS】- Working Area: 300x200x50 mm (11.8″x7.9″x2.0″). Work table dimension: 240 mm*425 mm*15 mm. Spindle Speed: 0 ~ 8000rpm/Min, Power: 500W.
- 【DURABLE QUALITY】- Equipped with an aluminum backing plate, this CNC machine is more steady and solid. The chrome shafts are not easy to deform, designed aluminum dust-proof plate for easy cleaning, and suitable for long time use.
- 【STRONG COMPATIBILITY】- Can be controlled by computer for more precise engraving control. Replace the traditional parallel Interface with USB, suitable for desktop and laptop computers. And compatible with more operating systems(WINDOWS 2000 / XP, WIN7, WIN8, WIN10).
- 【HIGH TORQUE TRANSMISSION】- Flexible coupling can be used for high torque transmission. Cover plates greatly reduce the pollution for the screws and shafts. Spindle motor knob can be useful for small positioning adjustment, providing precise engraving.
- 【MULTIPLE APPLICATION】- Engraving Machine is perfect for the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, MDF board, advertising signs, etc.

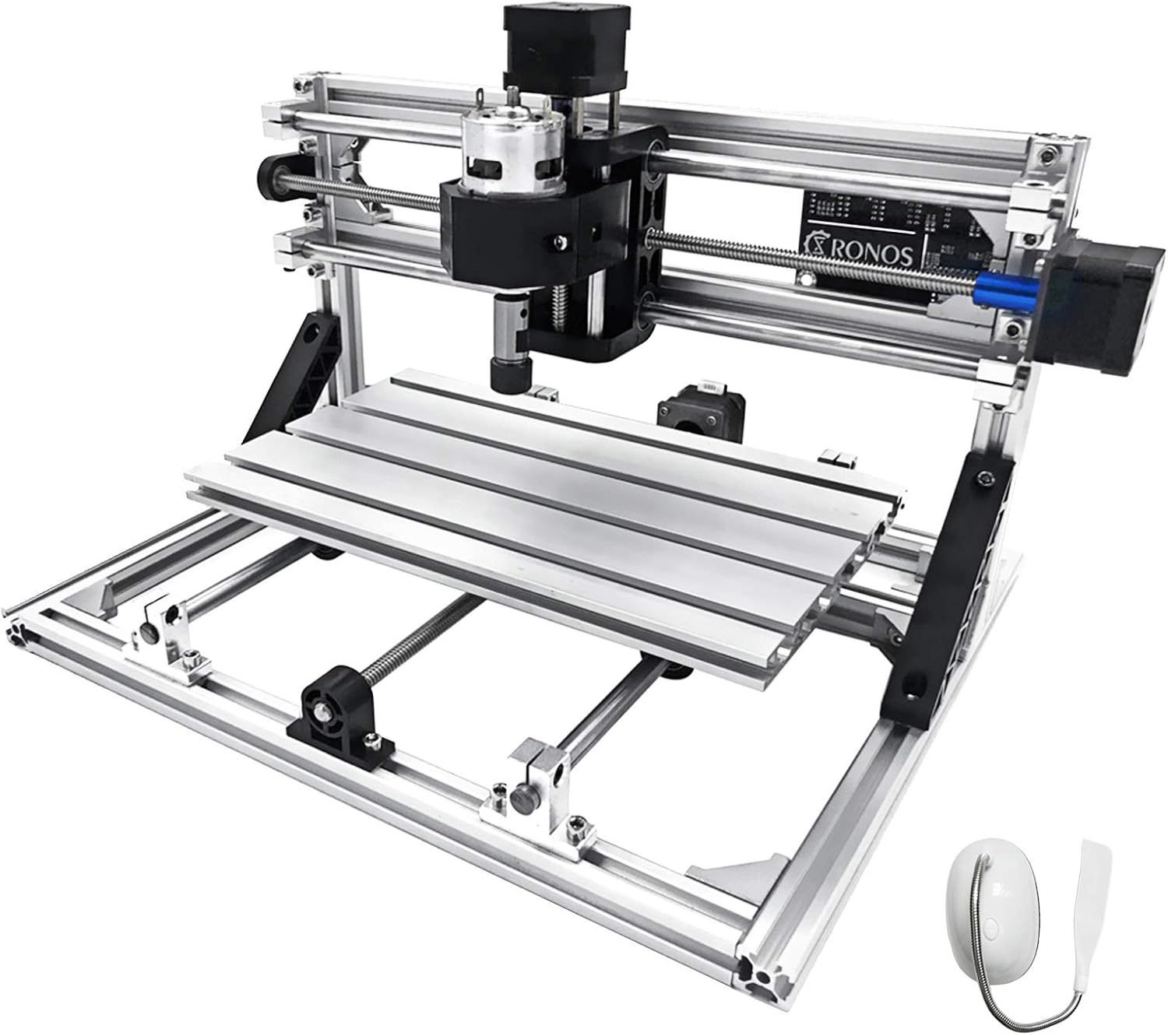

VEVOR CNC 3018 CNC Router Kit 3 Axis CNC Router Machine GRBL Control with ER11 and 5mm Extension Rod for Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine
- 【PREMIUM QUALITY】- Made of 2020 aluminum profiles and black injection molding material for Long-term use and high precision. The working travel of this machine is 300(X)x180(Y)x45(Z)mm.
- 【EASE OF USE】- According to the instructions, the machine is easy to assemble. Simply connect to computers via USB port, and controlled by GRBL. Supports windows XP SP3, win7, win8, win10,(32/64) and Linux system.
- 【CONVENIENT CONTROL】- Comes with an ingenious GRBL control board, featuring dual Y-axis, four-axis drive and full functionality.
- 【HIGH PERFORMANCE】- Equipped with T8 screw rods driving units, three 42 stepper motors, and a 775 (12-36V)24V spindle motor with rotational speed of 10000r/min.
- 【VERSATILE USE】- Used to engrave all types of plastics, soft aluminum, acrylics, PVCs, PCBs, etc.
Power Milling Machines,4 Axis CNC 3040 Router Engraver 400W Desktop Engraving Drilling Milling Machine Drill Wood DIY Artwork Woodworking 3D Driller Cutting for Building, Building Model Making, PCB
- ★Simple operation and installation.More steady and strong equiped with aluminum alloy frame materials.Emergency stop button enhance security.Large 3D engraving in soft wood, MDF board, native wood, PV
- ★Can engraving much more materials by spiral flute bits, such as metal, steel, MDF board, solid wood, composite board plywood, stone.Spindle motor knob is useful for small positioning adjustments.
- ★The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.The chrome shafts is not easy to deform, suitable for long time use.
- ★Application:XYOUNG 3040 engraer is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.
- ★Suitable:The Computerized Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood.
is not recommended to connect to a notebook through a parrallel port as the power saving features tend to interrupt the data flow. It is also not recommended to connect to a computers with 64 bit versions of Windows due to problems with the Parrallel port driver.
When you buy the item, we will offer 3d digital models (stl, cdr format file) as gift, pls contact us by mail.
The engraving process is visible as controlled by computer
Introduction:
Exquisite 3040 is a miniature version of mobile longmen structure of carving machine,put on you computer is like puting a printer or scanner that coordination, and can completely as a compute peripherals tools, anywhere, anytime, help you to design intent fast real appear. Nonmetal materials on the milling, and it can also be used to carving simple PCB .
Technical Parameters:
Frame materials: aluminum alloy 6063 and 6061
Leadscrew: 404 double thread Trapezoidal screws
Spindle motor: 400w dc motor, 500~8000PRM/Min
The low-Powered 4-axis engraving machine cannot be Moterised by a VFD spindle motor.
1. The fixing parts for installing the spindle motor cannot be used universally;
2. The control box does not have a VFD, and the spindle motor cannot be controlled by software.
Spindle precision: radial beat acuities 0.03 mm
Control unit: triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions: G-code/.tab /.nc / .ncc/.txt
Communication interface: through parallel connection with computer
environment: Windows XP / win7 , 32bits s
BobsCNC E4 CNC Router Engraver Kit with the Router Included (610 mm x 610 mm cutting area and 85mm depth of travel)
The E4 CNC router comes with the DW660 router and Arduino based microprocessor using grbl that is connected thru a communications port thru a USB connection. We recommend the Universal Gcode Sender Platform Version which is a Java-based software that will run on Windows, OSX, Linux, and Raspberry Pi. Please visit our web page where you can download and review the assembly manual and quick start guides.

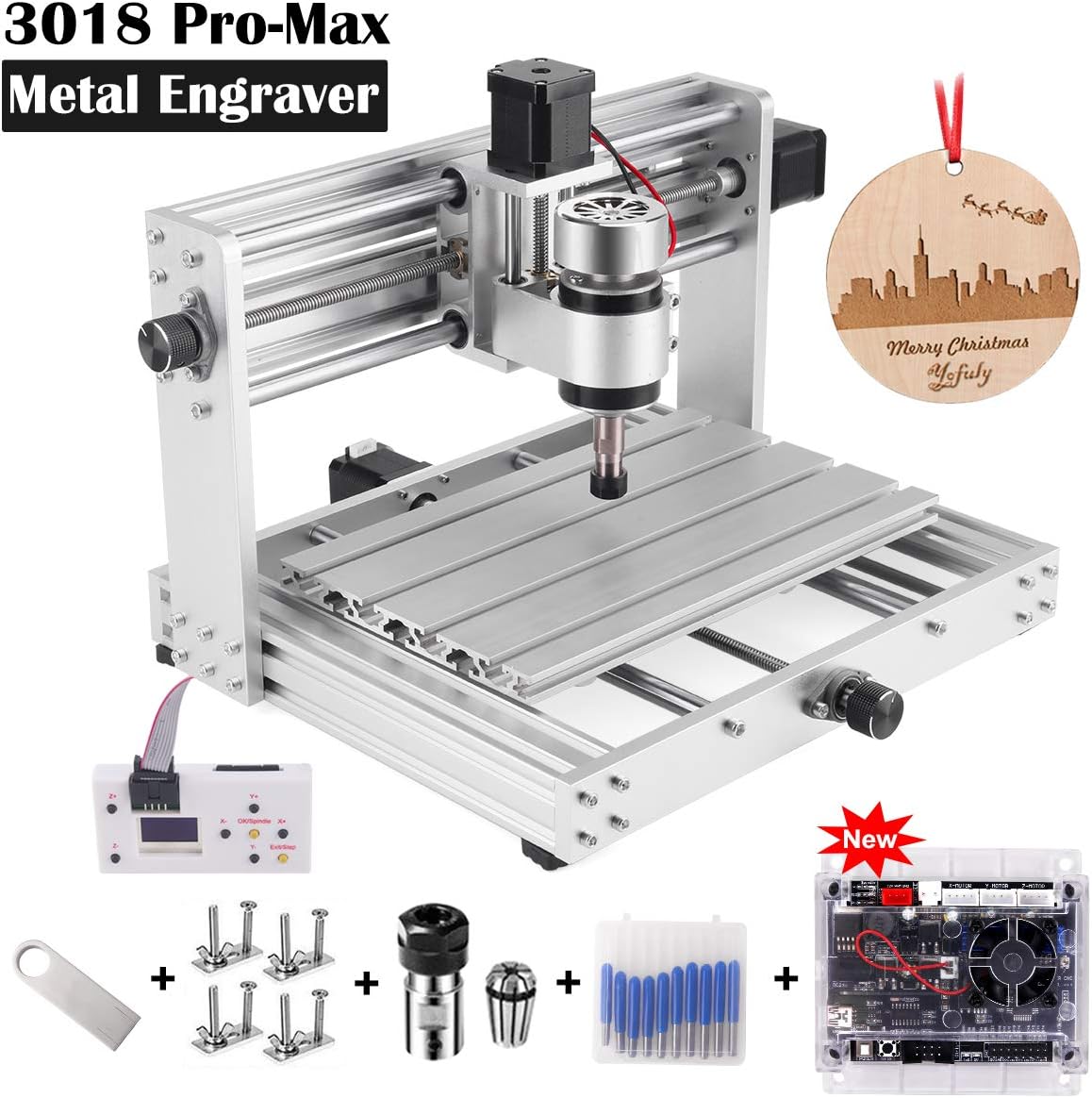

CNC 3018Pro-MAX Metal Router Kit GRBL Control with 200W Spindle, 3 Axis PCB Wood Carving Milling Engraving Machine with Offline Controller, DIY Wood Router Support Laser Engraving
- ✅【Upgrade Version】- All aluminum alloy body, X Y Z components are CNC integrated processing, non-aluminum plate splicing, high precision and high strength. The main shaft adopts 52mm diameter professional air-cooled spindle, rated at 200W, and the maximum power can reach 300W！
- ✅【Simple Assembly】- CNC 3018PRO-MAX is an upgraded version of 3018Pro. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. Moreover, the base height is raised to 4cm for a better stability.（3018Pro-MAX Metal Engraving Machine Installation：https://youtu.be/19uAh4M3pgs）
- ✅【Offline Controller】- Coming with an offline controller, no need to connect to the computer, just adjust X, Y, Z axis location on your offline controller
- no need to download files, the engraving file can be directly accessed.
- ✅【Wide Application】- Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the 3018Pro-MAX can be used on a wide range of projects and materials.
- ✅【Best Service】- We are committed to providing the best products and services. If you have any questions, please feel free to contact us, we will give you a satisfactory solution.
☛Assembling video: https://youtu.be/F2ZzjKhsXG0
☛3018Pro-MAX Metal Engraving Machine Installation：https://youtu.be/19uAh4M3pgs
☛English Manual Download: https://my.pcloud.com/publink/show?code=XZ4E8bkZ5GrPVwWysVzemE8OCqj9jy7m8cbk
Specifications:
Effective Engraving Area: 300 x 180 x 45mm(11.8 x 7.1 x 1.8”)
Frame Size: 400 x 330 x 240mm(15.7 x 13.0 x 9.4”)
Frame Material: aluminum alloy
Z-Axis Component Material: aluminum alloy
Spindle: 200 W Spindle
Softwear: GRBL control systems
Power Supply : AC 24V 10A
Stepper Motor : 1.3A 0.25N.m
Supported OS: Windows XP/ Win 7/ Win 8/ Win10
Usage : can be engraved plastic, wood, acrylic, pvc, pcb, aluminum, wood or the like material.
Package include:
1 * 3018Pro-MAX Router Kit
1 * Power Supply
1 * Anti-light Glasses
1 * Extension Rod with ER11 Collet
4 * Plate Clamp
10 * CNC Router Bits
SainSmart 4-Axis Desktop Robotic Arm, Assembled for Arduino UNO MEGA2560

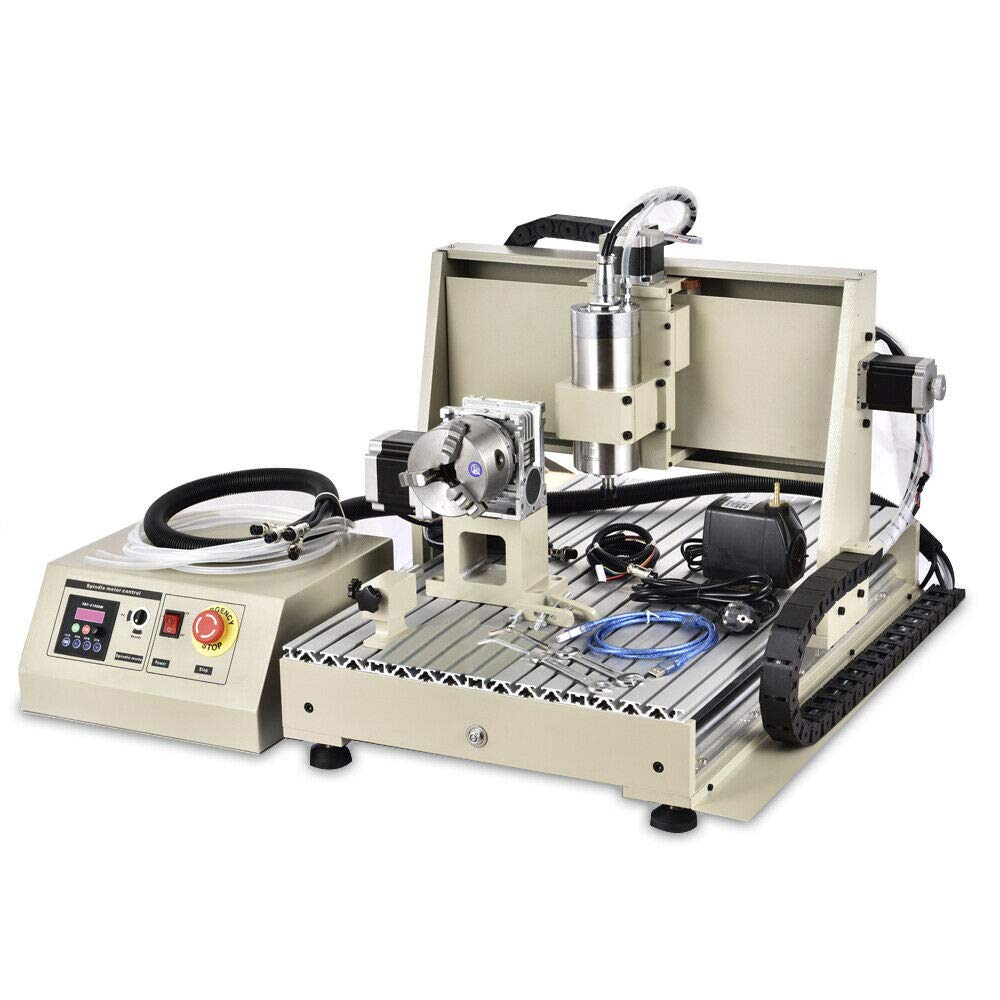

RanBB USB 4 Axis 6040 CNC Router Engraver 1500W VFD Spindle Milling Machine with Remote Controller
- ◆【Note】The software perform better on the Windows XP/Windows 7 and 32 bites system computer, it will not work on Win 8/10 and 64 bites system computer. Please close the firewall and antivirus software on the computer before DOWNLOAD AND install the software.(This is very important).
- ◆【Brief Description】This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
- ◆【Features】Water cooling spindle works more stable and durable. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
- ◆【Wide Application】Suitable for PCB, wood, Plexiglass, PVC, Crystal Acrylic, RESIN, Plastic, SEALS, MDF, COMPOSITE, Aluminum material,Copper
- ◆【Mini Router】The mini router Frame is movable. The machine can connect with computer as other external device such as printer, scanner…With the assist of the ROUTER 6040T, your design idea will be real-time display. 4 Axis Engraving Machine Manual Remote Controller
Engraving Machine Parameters:
X, Y, Z Working Area: 600(Y)*390（X）*120(Z)mm
Outside dimension: 865*680*570mm（L*W*H）
Table size: 770（Y）*490（X）mm
Lathe structure: 6061/6063 Aluminium alloy
Max. Feeding height: ≤100mm
Drive unit: X axis—1605 Ball Screws ; Y axis—1605 Ball Screws ; Z axis—1204 Ball Screws
Stepping motor: 57 two-phase 3A 150N.cm
Spindle Motor:
Water cooled spindle motor can work longer time than air cooled motor.
Water cooled spindle motor has higher stability and better concentricity than air cooled motor. Outside dimension: 65*158mm
Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket
VOLTS, current, power: AC110V, 60Hz, 5A, 1.5 KW VFD
Spindle motor: 1.5 KW Water Cooled
Spindle speed: 24000 rpm
Max working frequency: 400Hz
Principal axis collet: ER11collet, Standard configuration :6mm
Nut Model: ER11-A
Cooling: Water-cooling
Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
Lubrication way: lubricated by high grease
Repeat accuracy: 0.05mm
Spindle precision: radial beat acuities 0.03mm
Carving Instructions: G code / TAB files / nc file / NCC files
Communication interface: through USB connection with computer
Working Speed: 50-1500mm / min (different material with different speed settings)
Maximum Idle speed: 0-1500mm/min
Control Box Parameters:
Operating Voltage: AC110V
Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive
Computer connection: USB port
Command code: G code
Protection: Emergency stop button
Conclusion
By our suggestions above, we hope that you can found Desktop Cnc 4 Axis for you.Please don’t forget to share your experience by comment in this post. Thank you!
Our Promise to Readers
We keep receiving tons of questions of readers who are going to buy Desktop Cnc 4 Axis, eg:
- What are Top 10 Desktop Cnc 4 Axis for 2020, for 2019, for 2018 or even 2017 (old models)?
- What is Top 10 Desktop Cnc 4 Axis to buy?
- What are Top Rated Desktop Cnc 4 Axis to buy on the market?
- or even What is Top 10 affordable (best budget, best cheap or even best expensive!!!) Desktop Cnc 4 Axis?…
- All of these above questions make you crazy whenever coming up with them. We know your feelings because we used to be in this weird situation when searching for Desktop Cnc 4 Axis.
- Before deciding to buy any Desktop Cnc 4 Axis, make sure you research and read carefully the buying guide somewhere else from trusted sources. We will not repeat it here to save your time.
- You will know how you should choose Desktop Cnc 4 Axis and What you should consider when buying the Desktop Cnc 4 Axis and Where to Buy or Purchase the Desktop Cnc 4 Axis. Just consider our rankings above as a suggestion. The final choice is yours.
- That’s why we use Big Data and AI to solve the issue. We use our own invented, special algorithms to generate lists of Top 10 brands and give them our own Scores to rank them from 1st to 10th.
- You could see the top 10 Desktop Cnc 4 Axis of 2020 above. The lists of best products are updated regularly, so you can be sure that the information provided is up-to-date.
- You may read more about us to know what we have achieved so far. Don’t hesitate to contact us if something’s wrong or mislead information about Desktop Cnc 4 Axis.
